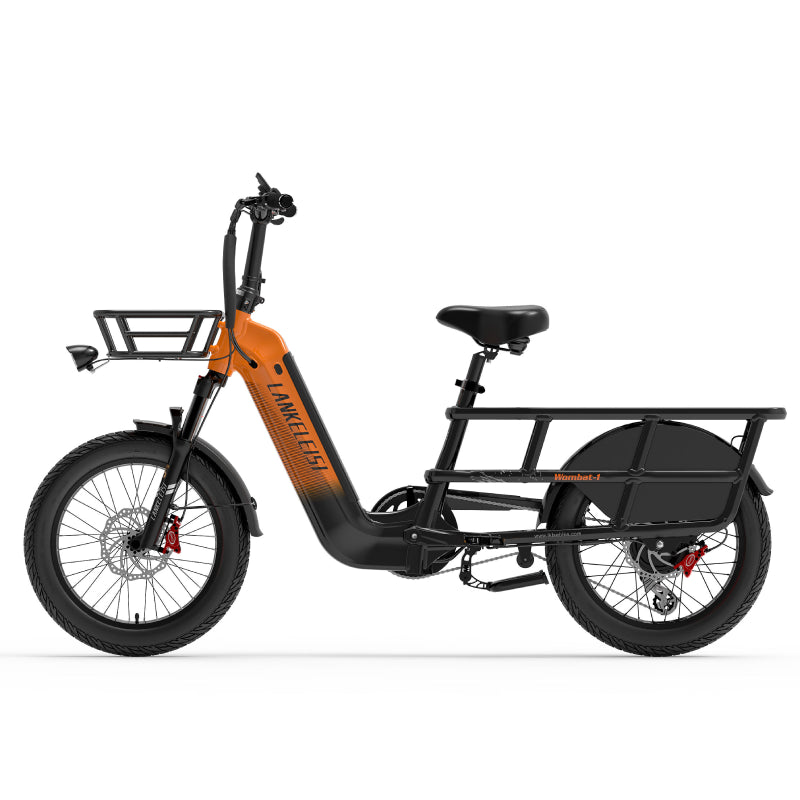

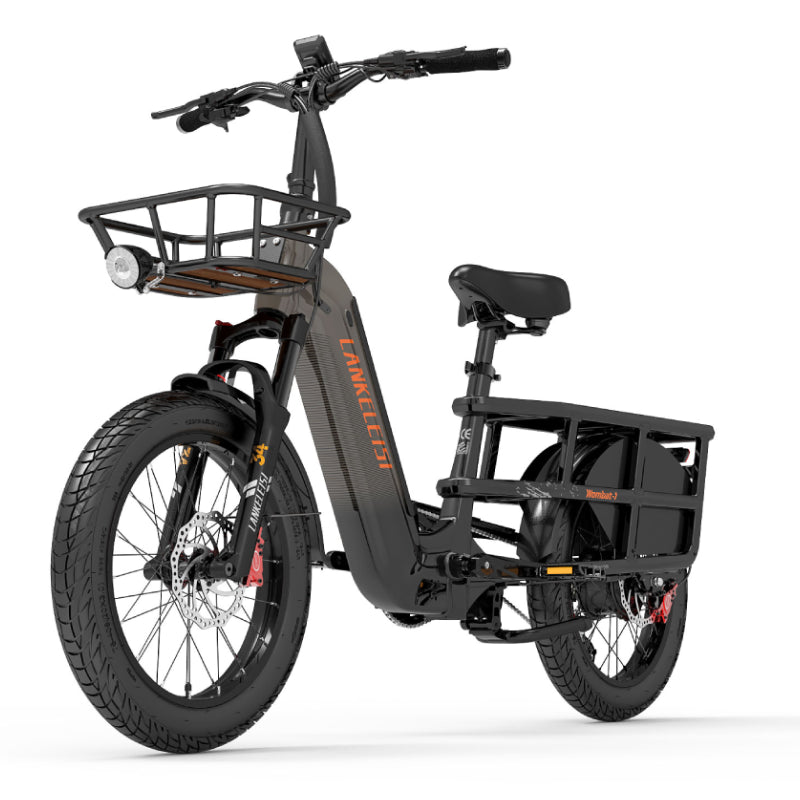

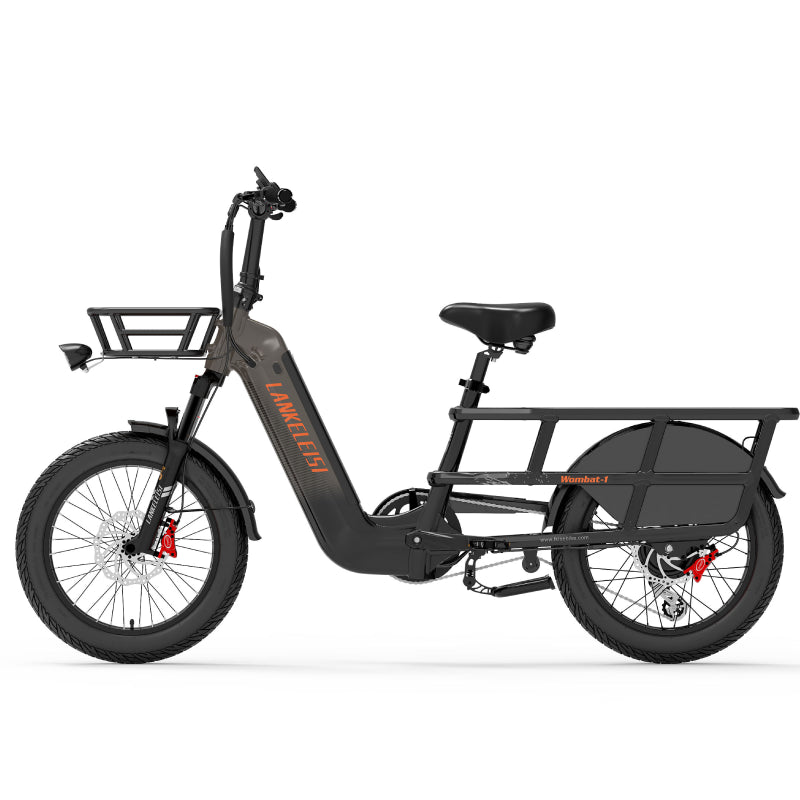

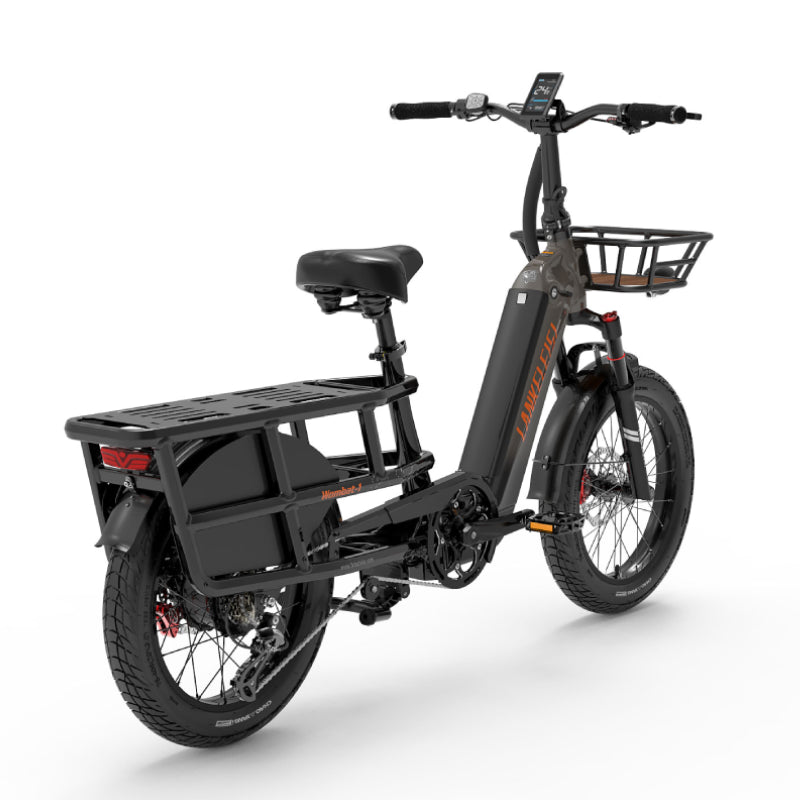

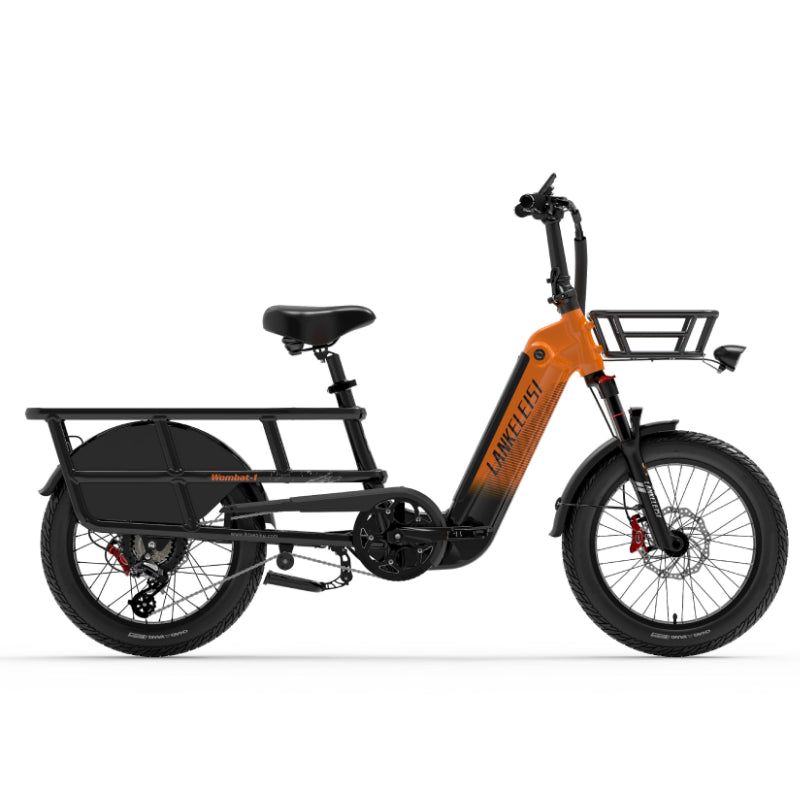

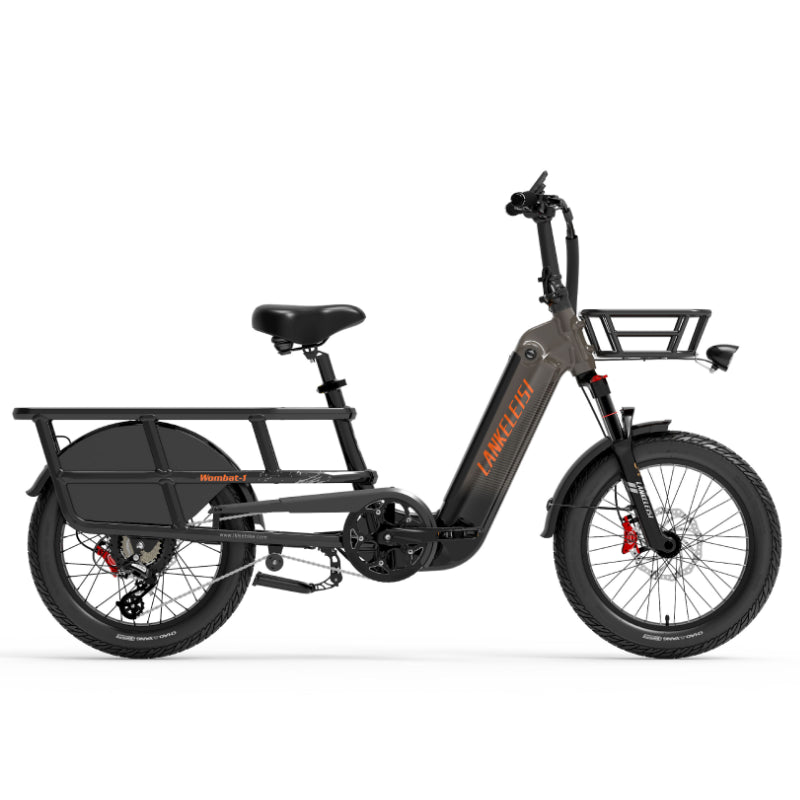

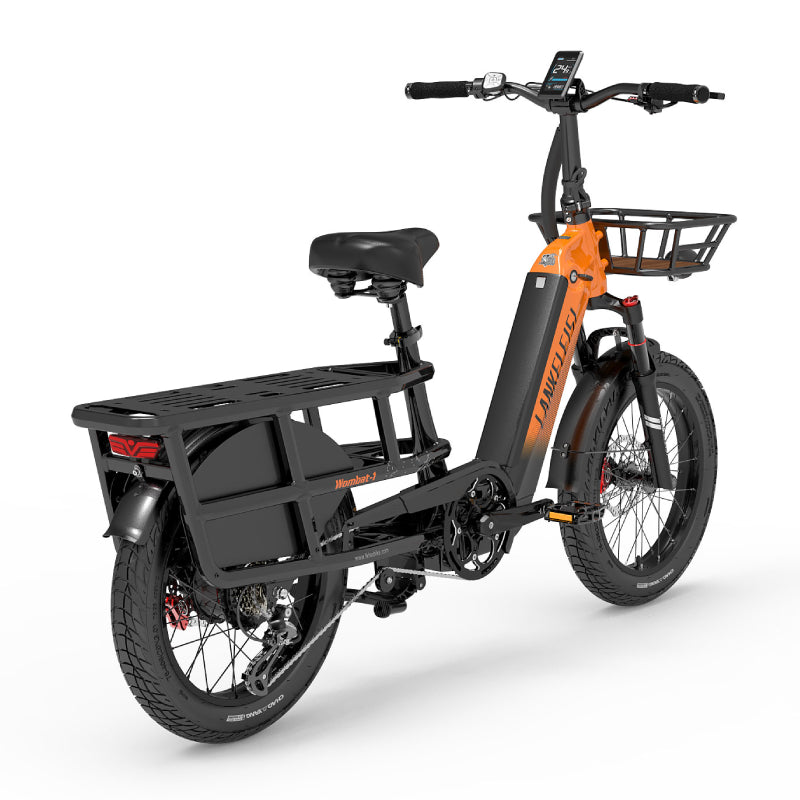

LANKELEISI Wombat-1 1000W Long Range Cargo Electric Bike
Note: Cargo basket, rear frame armrest, pedals can be purchased separately on request.
Compatible Accessories
For shipping times, warranty, shipping and return policies please see the relevant policies in the footer of the website.
Wombat-1 Parameters
Specifications
FRAMESET | ||
---|---|---|
Frame | 6061 aluminum alloy frame | |
Fork | Lockable aluminum shoulder oil spring suspension forks, travel 100 mm | |
Handelbar Sets | 31.8 aluminum alloy forged handlebar | |
Cranksets | Aluminum alloy crank square hole 52T | |
Rim | Aluminum alloy wheels | |
Brake | 180MM DYISLANDDe-energized Hydraulic Disc Brakes | |
Tire | 20*3.0 Fat tire | |
ELECTRONICS | ||
Motor | 48V 1000W brushless motor, max torque 75Nm | |
Battery | 48V 20AH Samsung Lithium Battery, 21700cells | |
controller | 48v20a vector controller | |
LCD Display | Color LCD with speed, trip, battery, assist level and more | |
Front light | 48V LED high brightness headlights | |
Charger | 48V 3A charger | |
Throttle | thumb throttle | |
Power assist Sensor | torque sensor | |
Waterproof Grade | IP54 (waterproof for daily use, suitable for use in rain) | |
SPEED & RANGE | Riding conditions tested: After being fully charged, the load is 60kg, the temperature is 25 ℃, and the test is conducted at 20km/h. The actual measurement is the average speed on a flat road surface | |
Pure electric mode | 60-70 km | |
Pedal Assist Mode | 120-150KM | |
Gear Systems | ||
Variable speed | Shimano 7 speed | |
Shifting Lever | Shimano M315-7 | |
Rear Derailleur | Shimano M310 | |
Chain | KMC 7s | |
WEIGHT& LOAD | ||
Bike Weight | 37KG (81.57lbs) | |
Max Bike Load | 200KG(440lbs) | |
Max Rear Rack Load | 90KG(190lbs) |

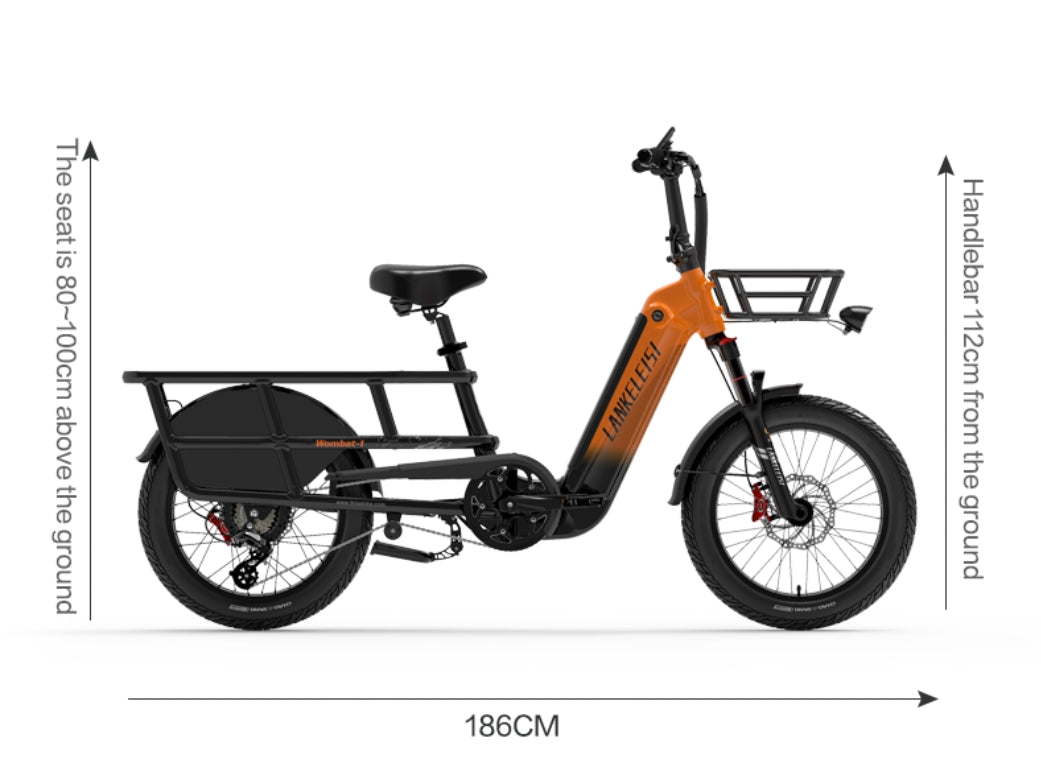

Geometry

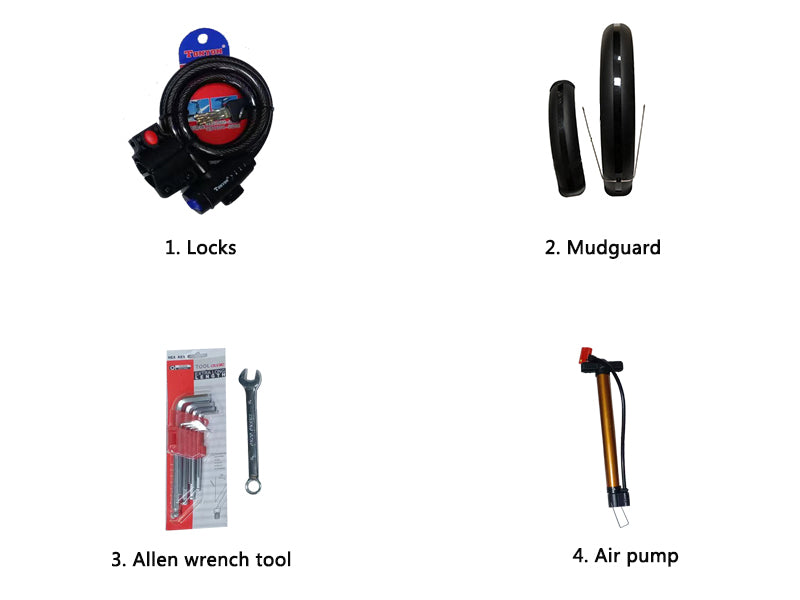

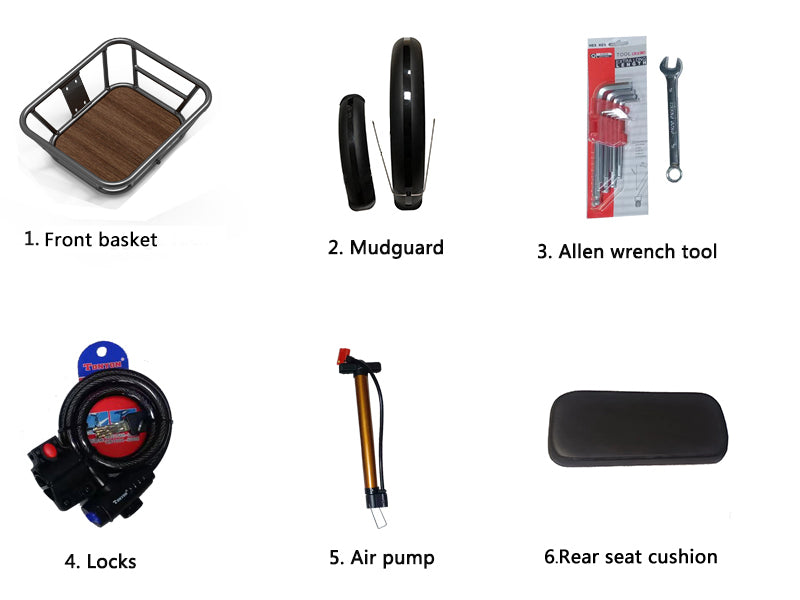

What's in the box?
CE Certification
FAQ
How long will it take to receive my ebike purchase?
If it is in stock, the staff at lankeleisi will arrange delivery for you as soon as possible. It is expected to arrive at the warehouse in 5-7 business days.
What is the appropriate height for the Wombat-1?
The Wombat-1 is suitable for riders in the 160cm-190cm height range.
