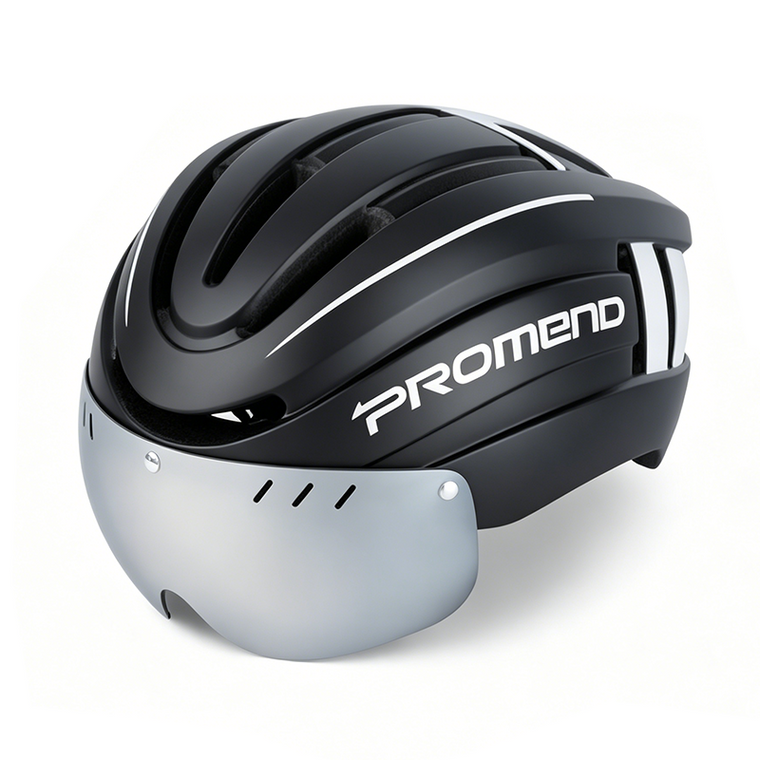

E-Bike Helmet
Rear-view mirror

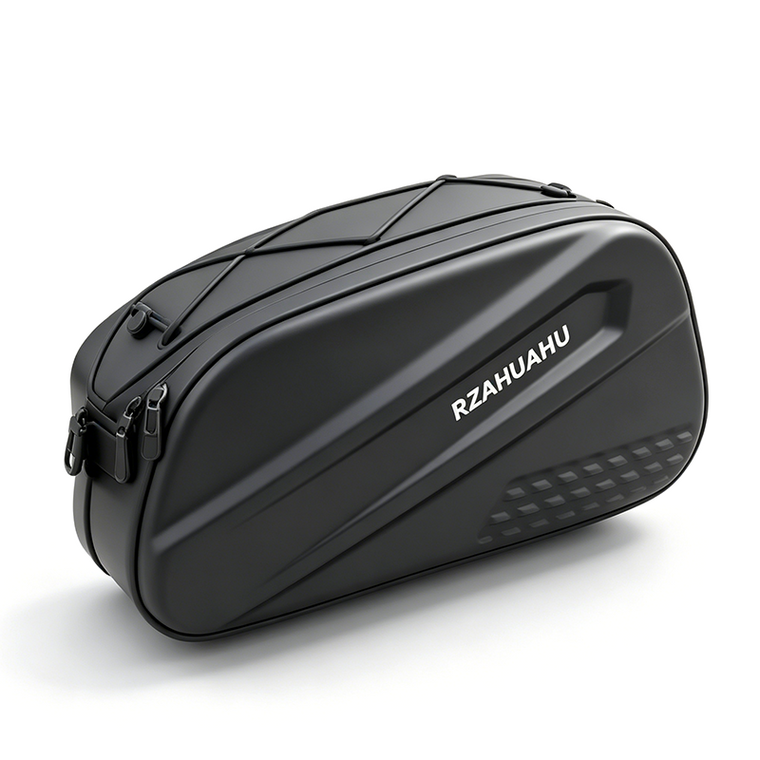

Rainproof Bicycle Rear Rack Bag
Phone Mount
bottle cage

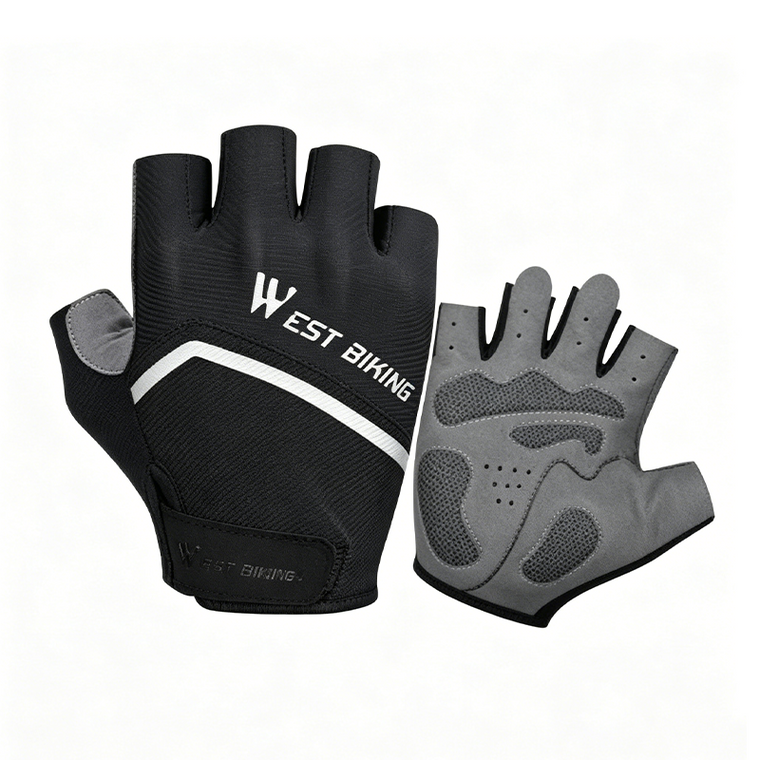

Multi-functional riding gloves

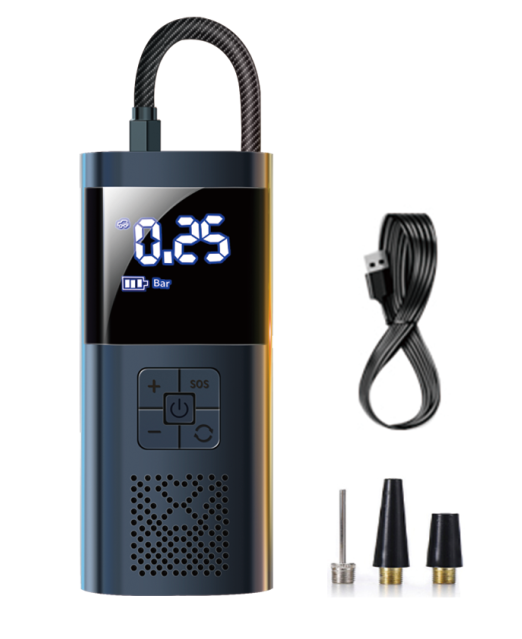

Wireless Power Bank Car Air Pump

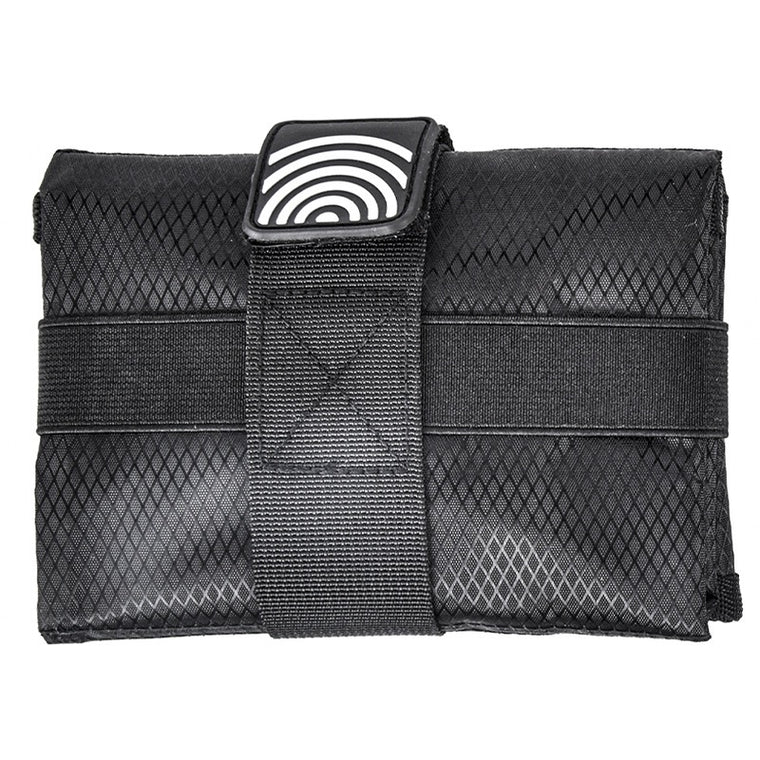

Bicycle repair toolkit
1-Year Extended Battery Service Plan
1-Year Extended Motor Service Plan
1-Year Extended Battery & Motor Service Plan
2-Year Extended Battery Service Plan
2-Year Extended Motor Service Plan
2-Year Extended Battery & Motor Service Plan
*If any issues after receiving order, please email us at service@lankeleisi.com, we will resolve the issue as soon as possible.

250W/1000W Brushless Motor
Power Beyond the Beaten Path


250/1000W
Motor
89 N·m
Torque
The 52V 250W/1000W high-speed brushless motor is both lightweight and efficient, featuring an internal star gear system that enhances torque and energy conversion. This design reduces energy consumption and ensures quieter operation, leading to an increased cruising range. It also improves speed and climbing performance, delivering rapid and powerful output.
52V 20Ah SAMSUNG Li-ion Battery
Everyday Rides, Lasting Power


52V 20Ah Samsung
Battery
150 KM
Long Ride Range
The 52V 20Ah 21700 lithium battery pack is discreetly housed within the frame and features waterproof and dustproof protection. Its dual-layer safety ensures reliable and robust performance. On a full charge, the battery provides up to 60 km of pure electric range and up to 150 km with pedal assistance, offering plenty of power for both daily rides and extended journeys.
Large Double-Shoulder Oil Spring Suspension Fork
Less Impact. More Confidence.


100mm
Front Suspension Fork
200 kg
Payload Capacity
The dual oil spring suspension and lockable front fork are engineered to offer superior comfort during impacts. Featuring a 26x4.0 inch wheel size, the bike effortlessly navigates large potholes and rugged terrain. The
4.0" wide tires provide excellent anti-skid and anti-vibration performance, ensuring a smoother, more stable ride. This combination results in a larger, faster, and more effortless riding experience.
Other Highlights
LCD Color Display
The backlit color LCD display enables clear monitoring of speed, mileage, and power, and features IP54 waterproof protection for reliable operation in various environments. It shows battery capacity and level, odometer and total mileage, pedal assist level and output, as well as current, maximum, and average speed.

HYDRAULIC BRAKE
Featuring DYISLAND de-energized hydraulic disc brakes, this bike offers powerful and responsive stopping power in any condition. Ride confidently on snow, gravel, or steep descents with enhanced control and safety.

SHIMANO 7 SPEED GEAR SHIFT SYSTEM
The adjustable Shimano 7-speed transmission system, imported from Japan, is combined with a robust aluminum alloy crank featuring a 46T large chainring. This 1x7 gear setup, equipped with SIS indexing, ensures dependable shifting and enhances the overall riding experience, making each ride more enjoyable and efficient.

THUMB THROTTLE (Removable)
The thumb throttle is included with the bike but is not installed before shipping. You can choose whether to install it yourself. It is also removable and can be taken off whenever needed.

52V LED HEADLIGHT
The LED headlights provide long-rangeillumination for night riding. When riding inlow-light conditions or at night, activating thetaillight mode enhances visibility, alertingpedestrians and vehicles to ensure saferdriving.

26*4.0 FAT TIRE
The tires provide excellent stability, traction, and comfort on diverse surfaces with their wide, durable design. Ideal for off-road and rugged terrain.

COMFORT SADDLE
The streamlined, wide seat features an ergonomic design for enhanced comfort and ample space. It improves exercise posture and provides a more enjoyable riding experience.

One switch controls all
Riding mode/headlight/horn can be switched at any time. Press and hold the "+" button to switch between du-al-wheel drive/front-wheel drive/rear-wheel drive

Product details
Product details
Frame
6061 aluminum alloy frame
Step Type
Mid-Step
Suspension Type
Front Suspension
Fork
Front oil spring suspension
Handlebar Set
31.8 aluminum alloy forged handlebar
Crankset
Aluminum alloy crank 46T crankset
Rim
26*4.0 aluminum alloy wheels
Tires
26 *4.0" fat tire rubber
Maxmotor
250W/1000W
Motor Type
Hub Motor
Battery
52V 20Ah Samsung
Pedal Assist Sensor
Torque Sensor
Pedal Assist Mode
150 km
Display LCD
color screen LCD meter
Front Light
LED highlight headlights & LED tailights
Charger
52V 3A
Throttle
Thumb Throttle(Removable)
Waterproof Grade
IP54
Speed
25 km/h (52 km/h unlocked)
Pure Electric Mode
70 km
Variable Speed
Shimano 7-Speed
Shifting Lever
Shimano M315-7
Rear Derailleur
SHIMANO M310
Chain
KMC 7S
Brake
DYISLAND De-energized Hydraulic Disc Brakes
Applicable Height
165 - 195 cm
Payload Capacity
200 kg
Bike Weight
36 kg
What's In The Box
CHARGER
REAR RACK
FENDER
LOCK
AIR PUMP
INSTALLATION TOOLS
Size & Fit:

Suitable rider height
Let's get you fit
Slide the scale for your bike inseam measurement
DUKAWEY DM530
You will be able to pedal and stand over the frame comfortably.

Range Test in Practice
Full Throttle
*It can be used in private venues (this is for personalized expansion).
Preset
Max-25 km/h
Range: 70 km
After unlocked
Max-52 km/h
Range: 50 km
Pedal Assist
PAS1: (ECO)
Range: 150 km
PAS2: (Normal)
Range: 120 km
PAS3: (Sport)
Range: 90 km
PAS4: (Turbo)
Range: 70 km
PAS5: (Turbo+)
Range: 60 km
Results obtained with a 60kg rider, on flat terrain at 27°C. Range in your riding may be longer or shorter, depending on factors such as terrain, load, wind, temperature and tire pressure etc.
Installation video & User Manual
Frequently Asked Questions
Can't find what you're looking for? Check our documentation.
Can I ride the DUKAWEY DM530 legally on European roads?
Yes. The DUKAWEY DM530 is designed for European road use. It is equipped with a 250W motor and provides pedal assistance up to 25 km/h, making it suitable for everyday riding on public roads across most European countries. A CE certificate is available upon request.
Is the battery removable? How much does it weigh?
Yes. The battery can be easily removed from the bike for convenient charging and storage. It weighs approximately 5 kg.
Is the assembly process difficult?
No. Most of the key components of the DUKAWEY DM530 come pre-installed. If you need any assistance, our customer support team is always available to help.
How long will it take to receive my e-bike purchase?
If your selected e-bike model is in stock, we will process your order and arrange shipment as soon as possible. Delivery usually takes 5–7 business days.
Is the DUKAWEY DM530 suitable for long-distance rides?
Yes. The DUKAWEY DM530 uses a 52V 20Ah Samsung battery and offers a maximum assisted range of up to 150 km under ideal conditions, making it suitable for longer recreational rides and extended daily trips.
Is the DUKAWEY DM530 suitable for both paved roads and off-road trails?
Yes. The DUKAWEY DM530 is designed as an all-terrain e-bike, so it can be used for everyday paved-road riding as well as gravel roads, countryside routes, and moderate off-road trails.
Is installment payment supported?
Klarna installment payments in 3 installments are supported.
Can you provide an invoice?
We can provide a Proforma Invoice. Please contact us with the store name where you placed the order and your order number, and we will get back to you as soon as possible.
Who can I contact for further questions?
You can contact our colleagues by email at: service@lankeleisi.com
Does the battery switch turn off the battery power?
Sorry, but the battery key does not turn off the battery power. The battery key is only used to keep the battery in place on the bike. If you want to turn off the battery power, you can do so with the switch on the display.
If something goes wrong with my bike, how can I request warranty assistance?
We believe that communication is the best way to solve problems. If your bike has a malfunction, please contact us promptly. To help you accurately, describe the problem in detail and provide photos and videos of the defective parts, so our technicians can give you the most accurate solution.
How can I clean my bike?
Clean your Lankeleisi bike like a normal bike, but we recommend removing the battery before cleaning. After cleaning, dry it promptly with a dry cloth
